Intelligent Corner Crimping Production Line for Aluminum Win-door LMJJX-CNC-100x2200x3000

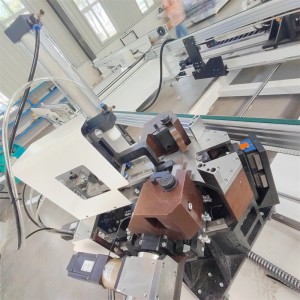

Intelligent Corner Crimping Production Line for Aluminum Win-door Featured Image

Short Description:

It’s used for efficiently crimping four corners of aluminum Window and door.

The whole machine is controlled by 18 servo motors.

The rectangular frame is extruded at one time, high processing efficiency.

Processing range: 480x680 - 2200x3000mm

Overall dimension: 10000x50000x1400mm

Send email to us

Product Detail

Product Tags

Processing Viedo

Main Feature

1. 1. Intelligent and Simple: the whole machine is controlled by 18 servo motors, except the cutter height is manual adjustment, all the others are auto adjustment through the servo system control.
2. 2. High efficiency: it spends about 45s to extrude one rectangular frame, then be transferred automatically to next process by belt.
3. 3. Large processing range: the Min. frame size is 480×680mm, the Max. frame size is 2200×3000mm.
4. 4. High auto level: transfer the rectangular frame automatically to next process by the conveyor belt of input and output worktable, save time and labour.
5. 5. Low labour intensity: window frame is transferred on the belt, no need worker to carry.
6. 6. Strong common ability: realize the double point cutter function through servo control, no need to customize the double point cutter according to the profile.
7. 7. Big power: driven by servo motor, through the torque of servo motor control the crimping pressure to ensure the crimping strength.
8. 8. High accuracy: through the torque monitoring function of servo system, it can realize the four corners preload automatically, ensure the diagonal dimension and crimping quality.
9. 9. Software docking: online with ERP software, such as Klaes, Jopps, Zhujiang, Mendaoyun, zaoyi, Xinger and Changfeng, etc
10. 10. Network/USB flash disk/scanning: import the processing data directly through network ,USB disk or scanning the QR code.
11. 11. The processed profile section can be imported in IPC, use as you need.

Main Technical Parameter

Item	Content	Parameter
1	Input source	380V/50HZ
2	Working pressure	0.6～0.8MPa
3	Air consumption	80L/min
4	Total power	16.5KW
5	Max. pressure	48KN
6	Cutter adjustment height	100mm
7	Processing range	480×680～2200×3000mm
8	Dimension（L×W×H）	11000×5000×1400mm
9	Weight	5000KG

Main Component Description

Item	Name	Brand	Remark
1	Servo motor,servo driver	Schneider	Franc brand
2	PLC	Schneider	Franc brand
3	Low-voltage circuit break,AC contactor	Siemens	Germany brand
4	Button, Knob	Schneider	Franc brand
5	Proximity switch	Schneider	Franc brand
6	Standard air cylinder	Airtac	Taiwan brand
7	Solenoid valve	Airtac	Taiwan brand
8	Oil-water separator（filter）	Airtac	Taiwan brand
9	Ball screw	PMI	Taiwan brand
10	Rectangular linear guide rail	HIWIN/Airtac	Taiwan brand
Remark:when the supply is insufficient, we will choose other brands with the same quality and grade.
