Product Introduction

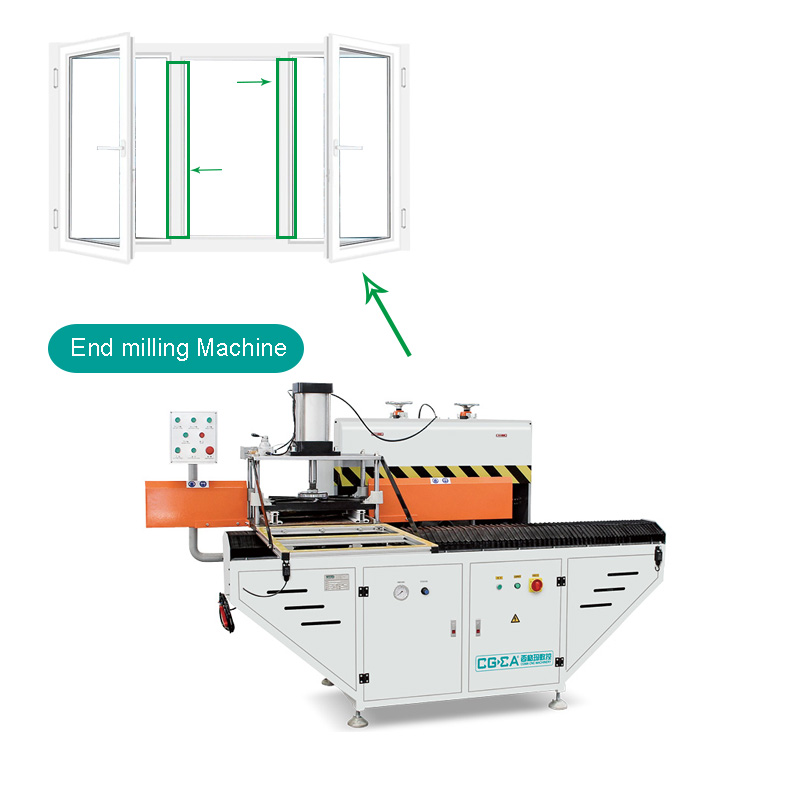

This machine is used for milling mullion end surface of aluminum win-door (including strengthen mullion), it adopts the structure with 4 axis and 5 cutters , which can be combined to any size. It can process multiple profiles at the same time, big diameter cutter and high processing efficiency. It adopts mechanical rack drive, frequency control. Equipped with guiding balance mechanism at the four corners of pressing plate to ensure the flatness of pressing plate and the evenness of the force, prevent the profile deformation. The Max. depth of milling is 80mm, the Max. height of milling is 130mm.
Product Details
Main Feature

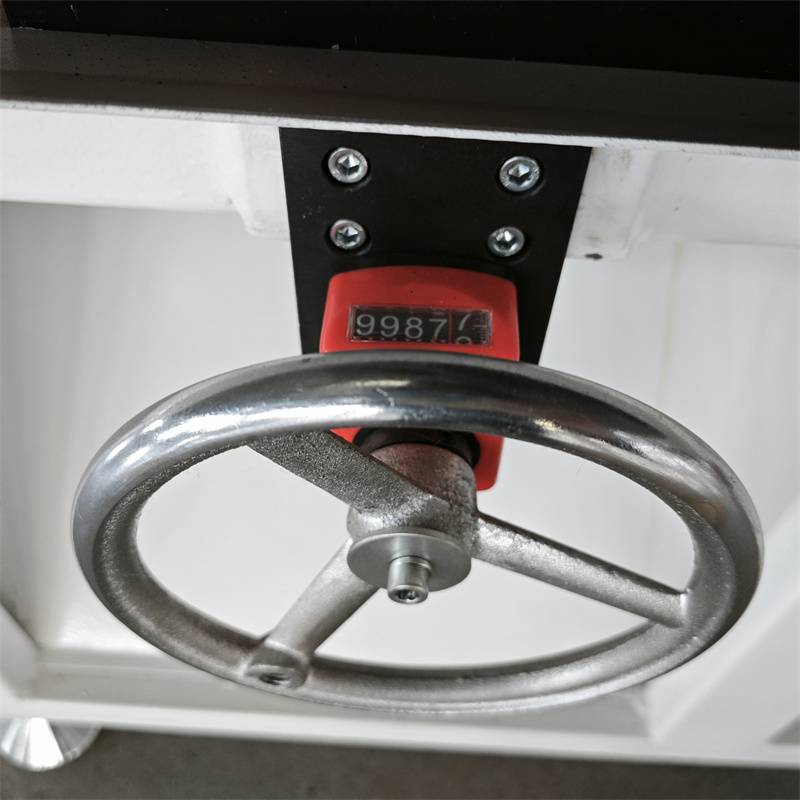

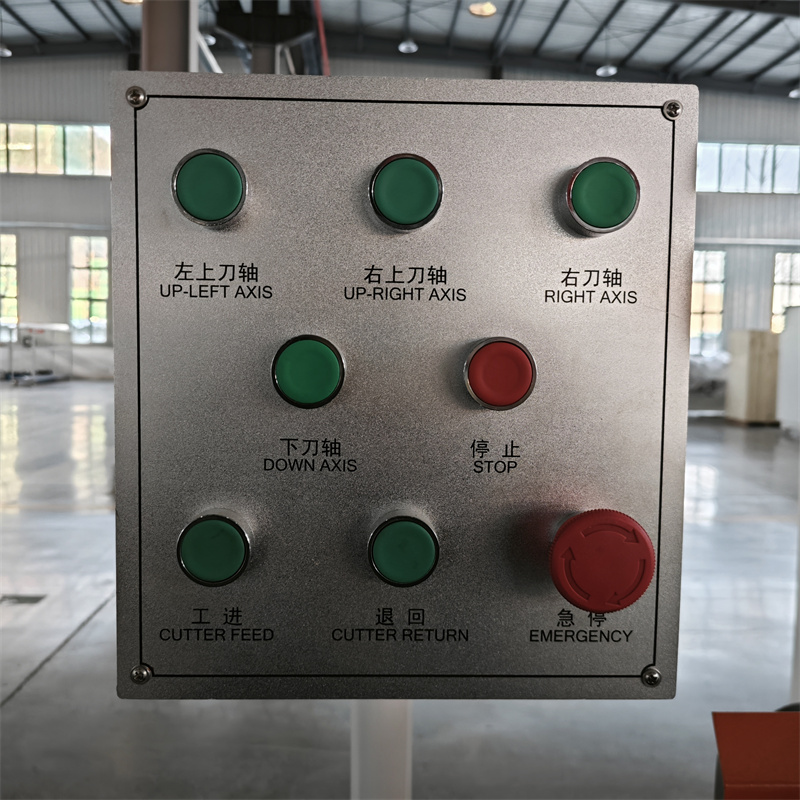

1.Large processing range: the structure with 4 axis and 5 cutters can be combined to any size.

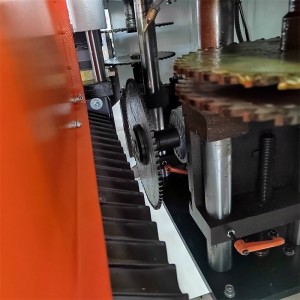

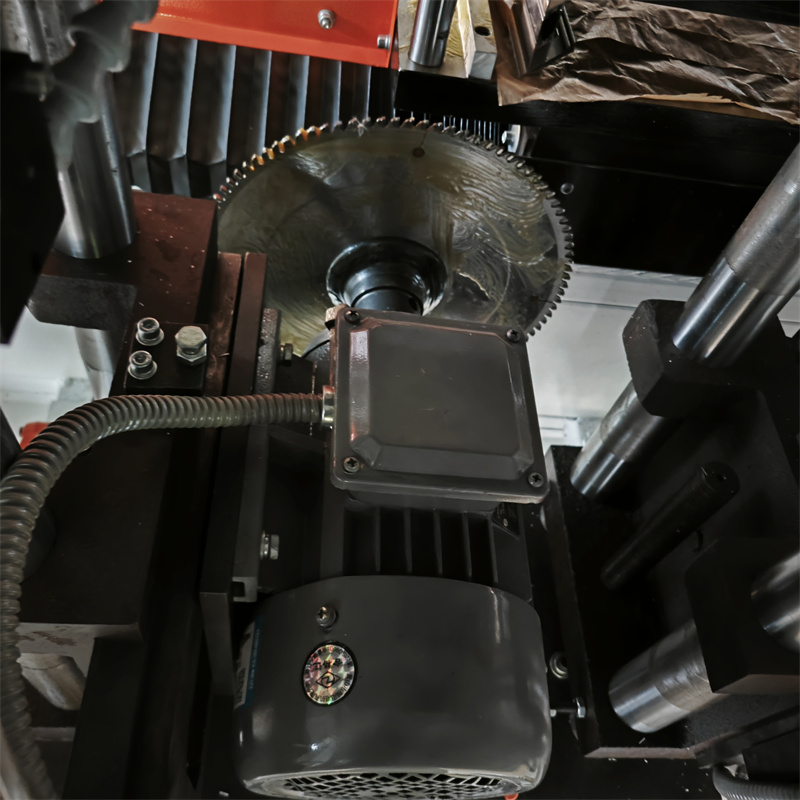

2.Big power: two 3KW and two 2.2KW direct-connected motors combined
3.High efficiency: process multiple profiles at the same time.

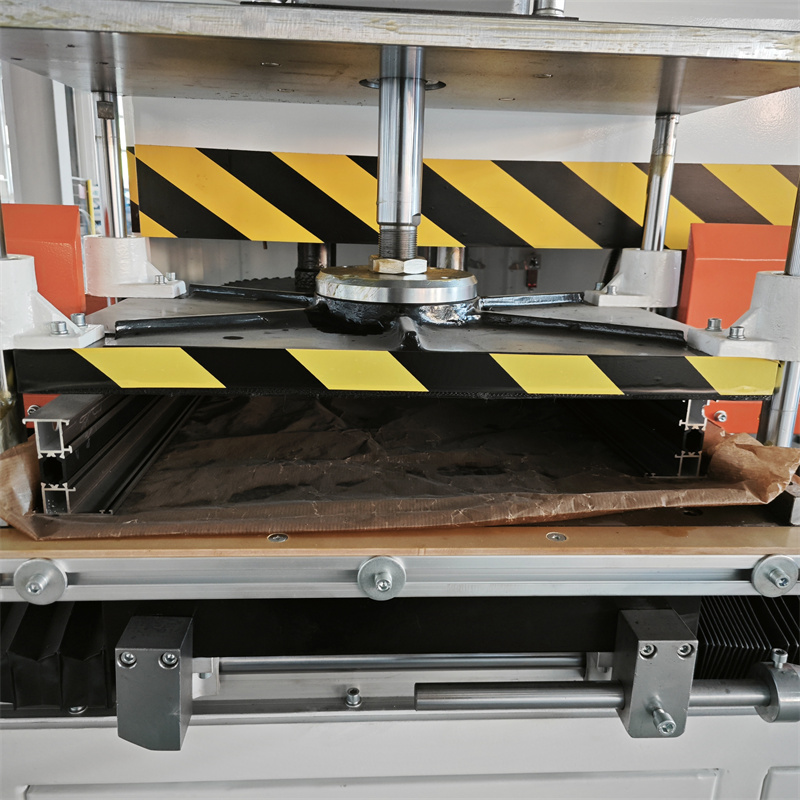

4.High accuracy: equipped with guiding balance mechanism at the four corners of pressing plate to ensure the flatness of pressing plate and the evenness of the force, prevent the profile deformation.
5.Stable milling: adopts mechanical rack drive, frequency control.
Main Technical Parameter
|
Item |
Content |
Parameter |
|
1 |
Input source | 380V/50HZ |
|
2 |
Working pressure | 0.6～0.8MPa |
|
3 |
Air consumption | 130L/min |
|
4 |
Total power | 10.95KW |
|
5 |
Motor speed | 2820r/min |
|
6 |
Max. Milling depth | 80mm |
|
7 |
Max. Milling height | 130mm |
|
8 |
The cutter quantities | 5pcs（∮250/4pcs，∮300/1pc） |
|
9 |

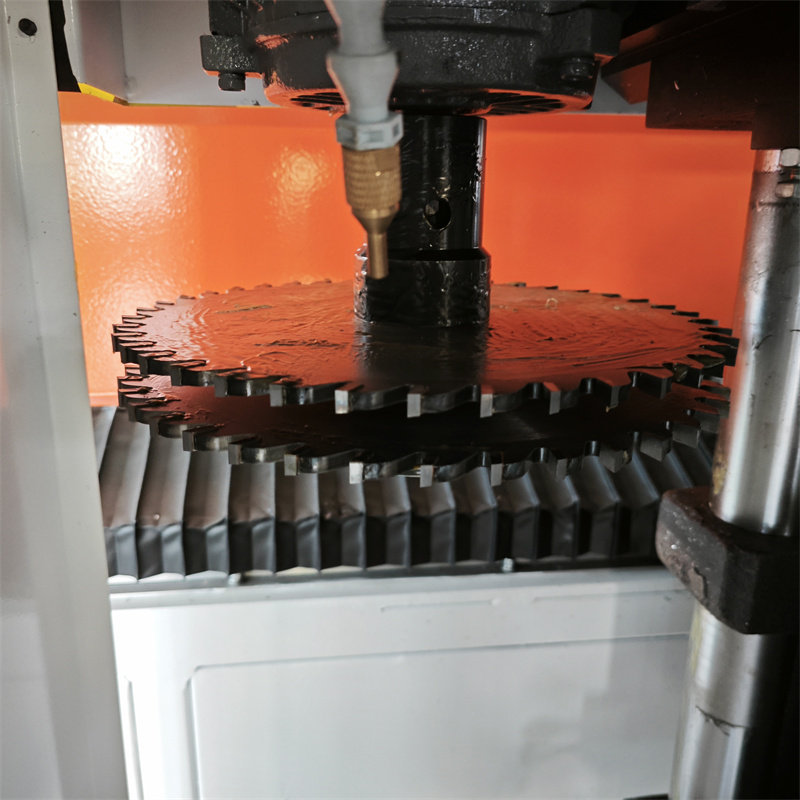

The cutter specification | Milling cutter：250×6.5/5.0×32×40T(the original machine comes with)Saw blade：300×3.2/2.4×30×100T |
|
10 |
Worktable valid dimension | 480mm |
|
11 |
Cutting accuracy | Perpendicularity ±0.1mm |
|
12 |
Dimension（L×W×H） | 4200×1300×1000mm |
|
13 |
Weight | 950KG |
Main Component Description
|
Item |
Name |
Brand |
remark |
|
1 |
Low-voltage apparatus |
Siemens
|
Germany brand |
|
2 |
Frequency converter |
Delta |
Taiwan brand |
|
3 |
Button, Knob |
Schneider |
France brand |
|
4 |
Relay |
Panasonic |
Japan brand |
|
5 |
Phase sequence protection |
Anly |
Taiwan brand |
|
6 |
Nonstandard air cylinder |
Hengyi |
China brand |
|
7 |
Solenoid valve |
Airtac |
Taiwan brand |
|
8 |
Oil-water separator(filter) |
Airtac |
Taiwan brand |
| Remark:when the supply is insufficient, we will choose other brands with the same quality and grade. | |||
