CGMA LWJKP4 hydraulic four corner crimping line for aluminum window and door, window making machine
Product Introduction
This machine is used for efficiently crimping four corners of aluminum Win-door. This machine is driven by hydraulic system, the Max. Pressure is 48KN, ensure the crimping corner strength. It spends about 45s to extrude one rectangular frame，then be transferred automatically to next process by the conveyor belt of input and output worktable, save time and labour. Through the torque monitoring function of servo system, it can realize the four corners preload automatically, ensure the diagonal dimension and crimping quality. Simple operation, the processing data can be imported directly through network ,USB disk or scanning the QR code, and the processed profile section can be imported in IPC, use as you need. Equipped with bar code printer to print the material identification in real time.
The Min. frame size is 480×700mm, Max. Frame size 2200×3000mm.
Main Feature
1.High efficiency: one rectangular frame can be extruded about 45s.
2.Large range: Min. Frame size 480×700mm, Max. Frame size 2200×3000mm.
3.Big power: driven by hydraulic system, the Max. Pressure is 48KN, ensure the crimping corner strength.
4.High accuracy: through the torque monitoring function of servo system, it can realize the four corners preload automatically, ensure the diagonal dimension and crimping quality.
Main Technical Parameter
|
Item |
Content |
Parameter |
|
1 |
Input source | 380V/50HZ |
|
2 |
Working pressure | 0.6～0.8MPa |
|
3 |
Air consumption | 80L/min |
|
4 |
Total power | 13.0KW |
|
5 |
Oil tank capacity | 65L |
|
6 |
Normal Oil pressure | 16MPa |
|
7 |
Max. Hydraulic pressure | 48KN |
|
8 |
Cutter adjustment height | 100mm |
|
9 |
Processing range | 480×700～2200×3000mm |
|
10 |
Dimension（L×W×H） | 12000×5000×1400mm |
|
11 |
Weight | 5000KG |
Main Component Description
|
Item |
Name |
Brand |
Remark |
|
1 |
Servo motor,servo driver |
Schneider |
France brand |
|
2 |
PLC |
Schneider |
France brand |
|
3 |
Low-voltage circuit break,AC contactor |
Siemens |
Germany brand |
|
4 |
Button, Knob |
Schneider |
France brand |
|
5 |
Proximity switch |
Schneider |
France brand |
|
6 |
Standard cylinder |
Airtac |
Taiwan brand |
|
7 |
Solenoid valve |
Airtac |
Taiwan brand |
|
8 |
Oil-water separator（filter） |
Airtac |
Taiwan brand |
|
9 |
Ball screw |
PMI |
Taiwan brand |
|
10 |
Rectangular linear guide rail |
HIWIN/Airtac |
Taiwan brand |
| Remark:when the supply is insufficient, we will choose other brands with the same quality and grade. | |||

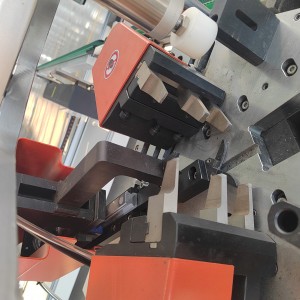

Product Details
