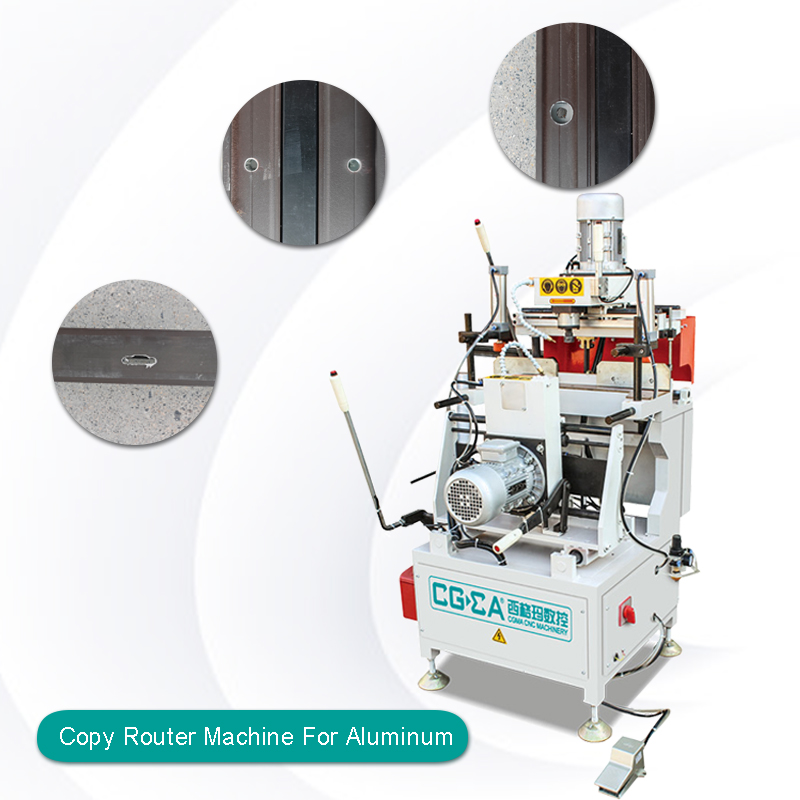

Main Feature
1. It is consist of vertical and horizontal independent copying milling head.
2. Once clamping can complete the holes and grooves processing of vertical and horizontal, and ensure the precision of the position between the processing holes and grooves.
3. Equipped with high-speed copying needle milling head, two-stage copying needle design, it is suitable for the requirement of variety of copying size.
4. Copying ratio is 1:1, Standard copying model plate control copying size, adjust and exchange the backup model easily.
5. Process different positions of the holes and grooves through the scale controlling.
Main Technical Parameter
|
Item |
Content |
Parameter |
|
1 |
Input source | 380V/50HZ |
|
2 |
Working pressure | 0.6～0.8MPa |
|
3 |
Air consumption | 30L/min |
|
4 |
Total power | 3.0KW |
|
5 |
Spindle speed | 12000r/min |
|
6 |
Copying milling cutter diameter | ∮5mm、∮8mm |
|
7 |
Milling cutter specification | MC-∮5*80-∮8-20L1 MC-∮8*100-∮8-30L1 |
|
8 |
Copying milling range(L×W) |
Horizontal:235×100mm Vertical:235×100mm |
|
9 |
Dimension(L×W×H) |
1200×1100×1600mm |
Main Component Description
|
Item |
Name |
Brand |
Remark |
|
1 |
Low-voltage circuit breaker, AC contactor |
Siemens |
Germany brand |
|
2 |
Standard air cylinder |
Airtac |
Taiwan brand |
|
3 |
Solenoid valve |
Airtac |
Taiwan brand |
|
4 |
Oil-water separator(filter) |
Airtac |
Taiwan brand |
| Remark:when the supply is insufficient, we will choose other brands with the same quality and grade. | |||
