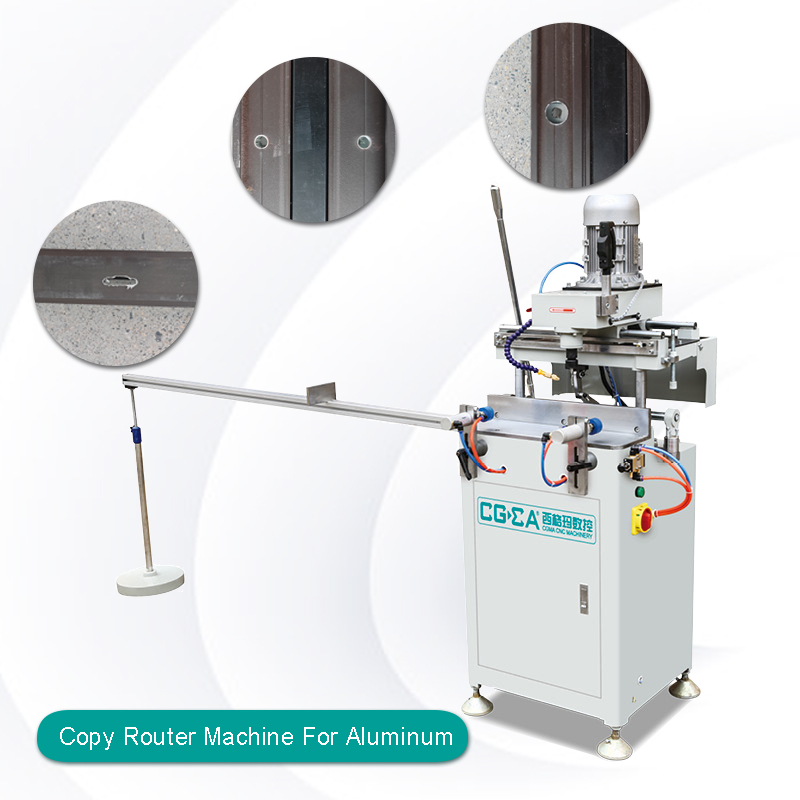

CGMA LXZ1B-250X150 single-axis copying milling machine, aluminum windows making machine
Product Introduction
This machine is used for milling processing of aluminum win-door lock-holes, water slots, hardware installation holes and other types of holes. Process different positions of the holes and grooves through controlling the ruler. Standard copying model plate controls copying size, copying ratio is 1:1, it is easy to adjust and exchange the backup model, widely application. Equipped with high-speed copying needle milling head, two-stage copying needle design, it is suitable for the requirement of variety of copying size.
Main Technical Parameter
|
Item |
Content |
Parameter |
|
1 |
Input source | 380V/50HZ |
|
2 |
Working pressure | 30L/min |
|
3 |
Air consumption | 0.6～0.8MPa |
|
4 |
Total power | 1.1KW |
|
5 |
Spindle speed | 12000r/min |
|
6 |
Copying milling cutter diameter | ∮5mm、∮8mm |
|
7 |
Milling cutter specification | MC-∮5*80-∮8-20L1/MC-∮8*100-∮8-30L1 |
|
8 |
Copying milling range（L×W） | 250×150mm |
|
9 |
Dimension（L×W×H） | 3000×900×900mm |
Main Component Description
|
Item |
Name |
Brand |
Remark |
|
1 |
Low-voltage circuit breaker, AC contactor |
Siemens |
Germany brand |
|
2 |
Standard air cylinder |
Airtac |
Taiwan brand |
|
3 |
Solenoid valve |
Airtac |
Taiwan brand |
|
4 |
Oil-water separator(filter) |
Airtac |
Taiwan brand |
| Remark:when the supply is insufficient, we will choose other brands with the same quality and grade. | |||
