Product Introduction

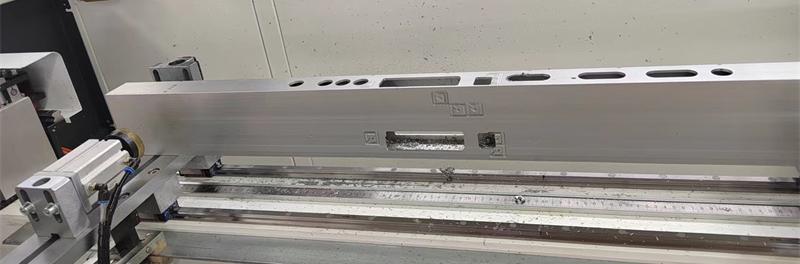

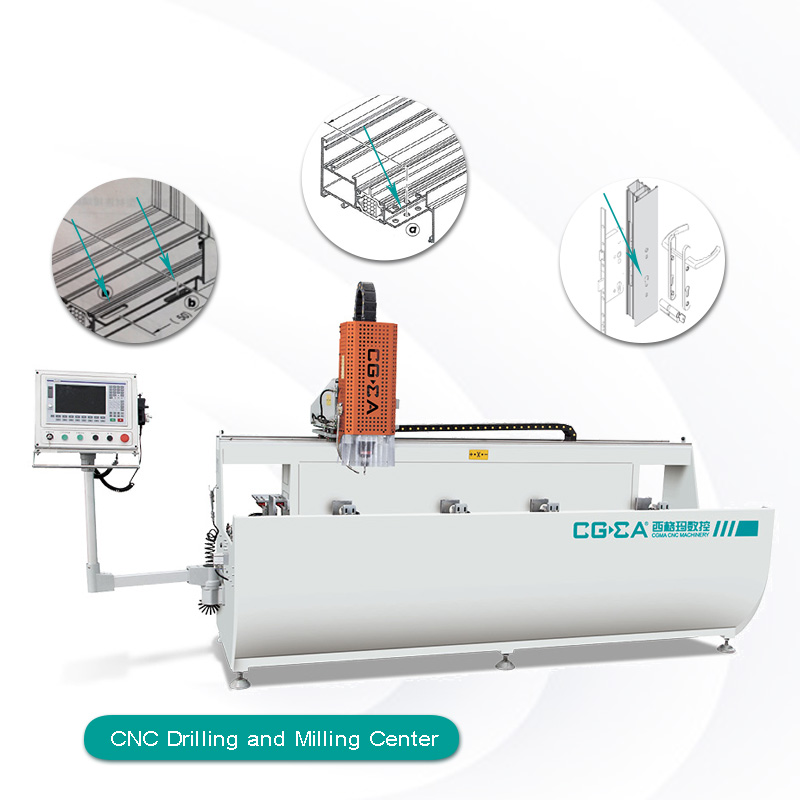

This machine is used for processing all kinds of holes and grooves of aluminum profile. The worktable is driven by 6KW servo motor to rotate automatically, big torque, once clamping can complete the processing of three surfaces, the processing efficiency is one times of the ordinary CNC drilling and milling machine, and 8 times of ordinary copying milling machine. Equipped with tool setting instrument, the system can automatic insert the length and position of the tool after replacing the tool. The system has standard graphics library, and can import directly the graphics to generate the processing program by network or USB disk. It adopts unique chip removal design, equipped with bottom chip tray to make the workshop cleaner.

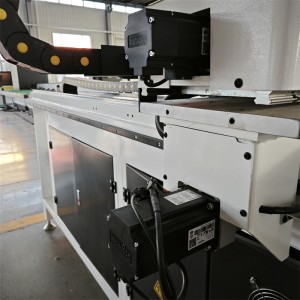

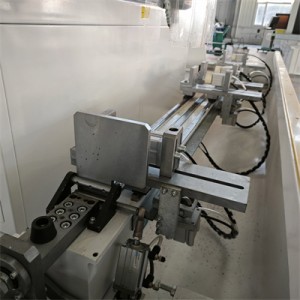

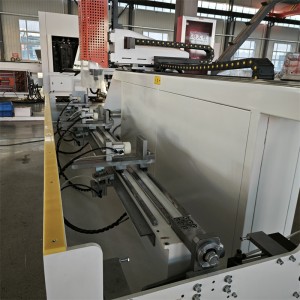

Product Details
Main Feature
1.High efficiency: once clamping can complete the processing of three surfaces.
2.Big Power:6KW electric motor, big torque.
3.Simple operation: no need skilled worker, the system has standard graphics library, can import directly the graphics to generate the processing program.
4.Quick tool setting: equipped with tool setting instrument, the system can automatic insert the length and position of the tool after replacing the tool.
Main Technical Parameter
|
Item |
Content |
Parameter |
|
1 |
Input source | 380V/50HZ |
|
2 |
Working pressure | 0.6～0.8MPa |
|
3 |
Air consumption | 80L/min |
|
4 |
Total power | 7.9KW |
|
5 |

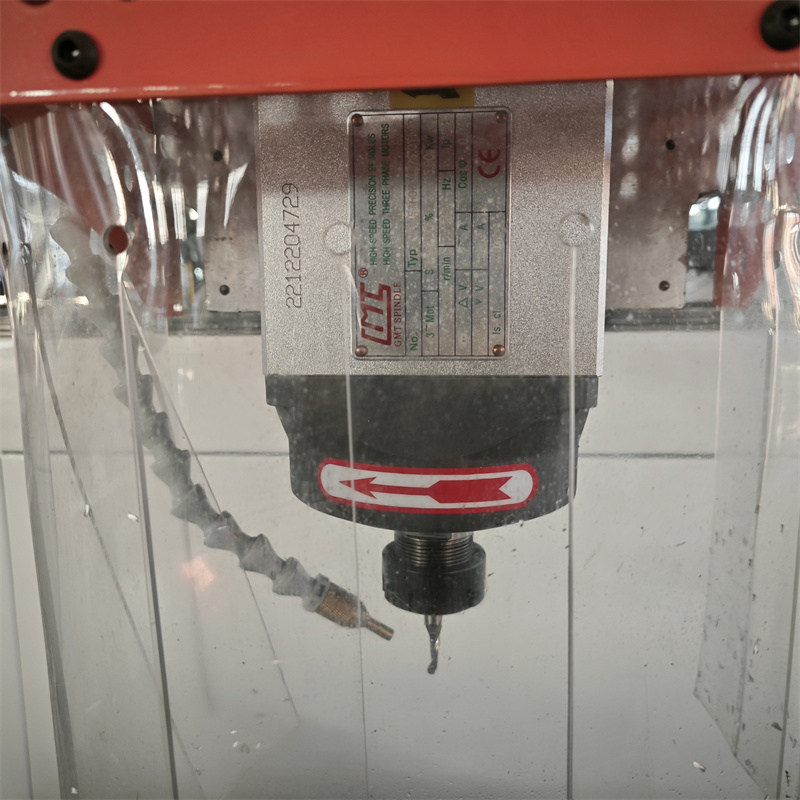

Spindle motor | 6KW |
|
6 |
Spindle speed | 12000r/min |
|
7 |
Cutter chunk standard | ER25 |
|
8 |
Worktable rotation position | -90°、0°、＋90° |
|
9 |
Processing range | ±90°：2500×160×175mm0°：2500×175×160mm |
|
10 |
Dimension（L×W×H） | 3500×1600×1800mm |
|
11 |
Weight | 1000KG |

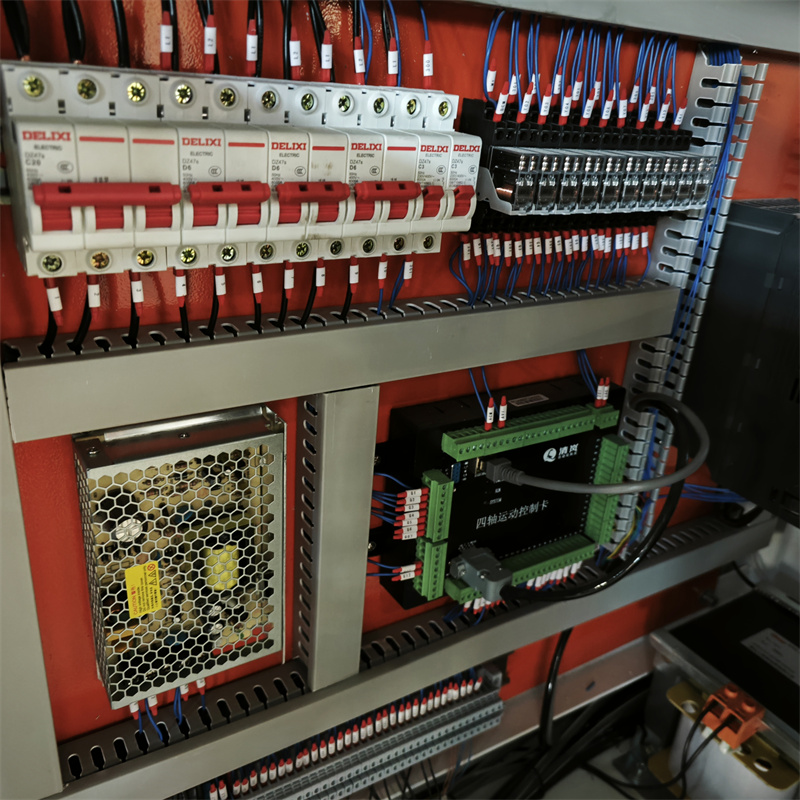

Main Component Description
|
Item |
Name |
Brand |
Remark |
|
1 |
Servo motor,servo driver |
Siemens |
China brand |
|
2 |
Low-voltage circuit break,AC contactor |
Siemens |
Germany brand |
|
3 |
Button, Knob |
Schneider |
France brand |
|
4 |
Proximity switch |
Schneider |
France brand |
|
5 |
Spindle motor |
深宜 |
China brand |
|
6 |

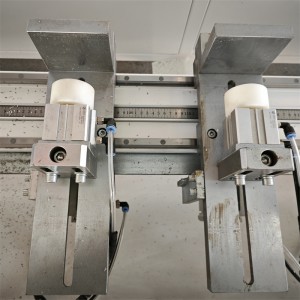

Standard air cylinder |
Airtac |
Taiwan brand |
|
7 |
Solenoid valve |
Airtac |
Taiwan brand |
|
8 |
Oil-water separator(filter) |
Airtac |
Taiwan brand |
|
9 |
Ball screw |
PMI |
Taiwan brand |
|
10 |
Rectangular Linear guide rail |
HIWIN/Airtac |
Taiwan brand |
| Remark:when the supply is insufficient, we will choose other brands with the same quality and grade. | |||
