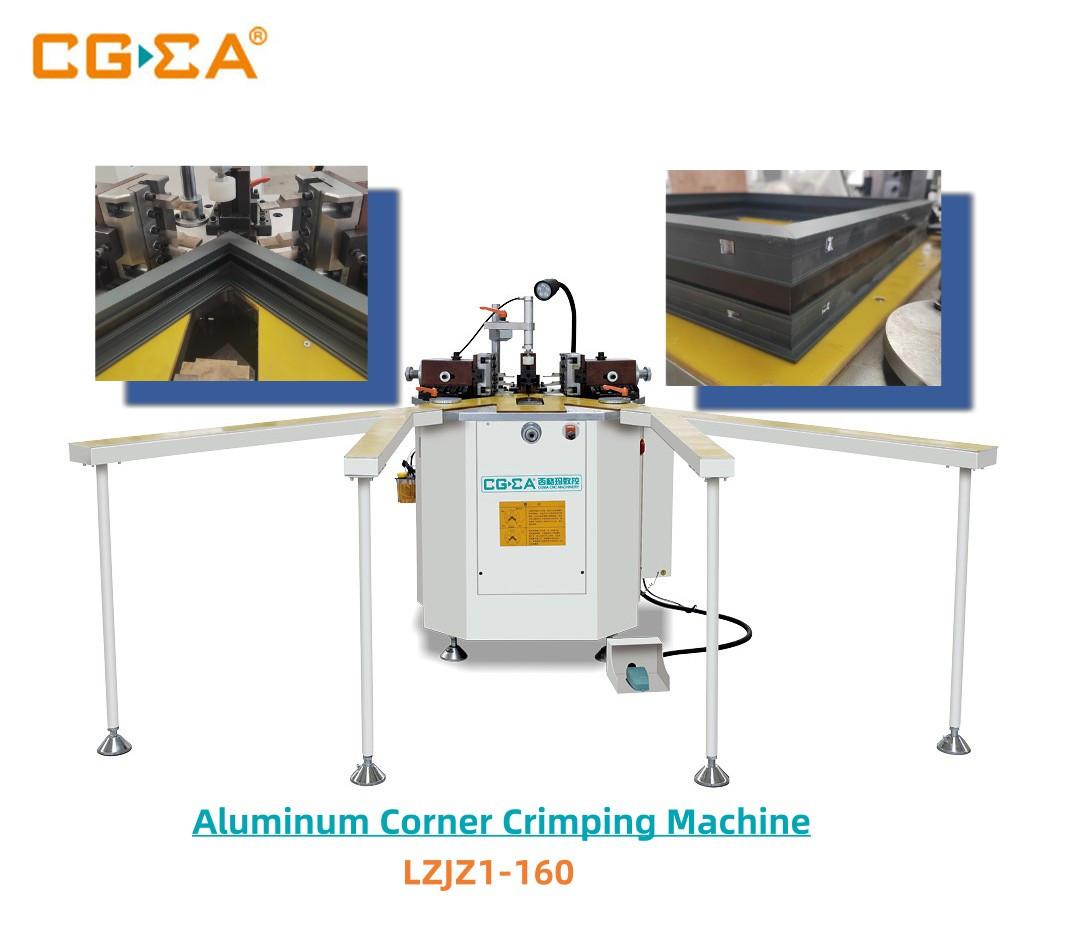

Product Introduction
This machine is professional for crimping and connecting 45° angle of aluminum win-door, which adopts PLC control. Driven by hydraulic system, large diameter hydraulic oil pump,the Max. Crimping pressure is 48KN, fast pressing speed, 4 corners/min. The crimping knifes work synchronously, which can ensure the precision and flatness of the extrusion. Equipped with quick locking tool device, it is more quickly to adjust the cutter position (magnetic type). The crimping height is 160mm.
Main Feature
1.Big power: driven by hydraulic system, the Max. Crimping pressure is 48KN.
2.High efficiency: fast pressing speed, 4 corners/min.
3.High accuracy: the crimping knifes work synchronously.
4.Large range: the crimping height is 160mm.
4.More simply: quick locking tool device, it is more quickly to adjust the cutter position (magnetic type).
Main Technical Parameter
|
Item |
Content |
Parameter |
|
1 |
Input source | 380V/50HZ |
|
2 |
Working pressure | 0.6～0.8MPa |
|
3 |
Air consumption | 30L/min |
|
4 |
Total power | 3.0KW |
|
5 |
Oil bank capacity | 45L |
|
6 |
Normal oil pressure | 16MPa |
|
7 |
Max.hydraulic pressure | 48KN |
|
8 |
Cutter adjustment height | 160mm |
|
9 |
Dimension（L×W×H） | 800×850×1350mm |
|
10 |
Weight | 550KG |
Main Component Description
|
Item |
Name |
Brand |
Remark |
|
1 |
PLC |
Siemens |
Germany brand |
|
2 |
Low-voltage circuit break,AC contactor |
Siemens |
Germany brand |
|
3 |
Button, Knob |
Schneider |
France brand |
|
4 |
Standard air cylinder |
Airtac |
Taiwan brand |
|
5 |
Solenoid valve |
Airtac |
Taiwan brand |
|
6 |
Oil-water separator（filter） |
Airtac |
Taiwan brand |
| Remark:when the supply is insufficient, we will choose other brands with the same quality and grade. | |||

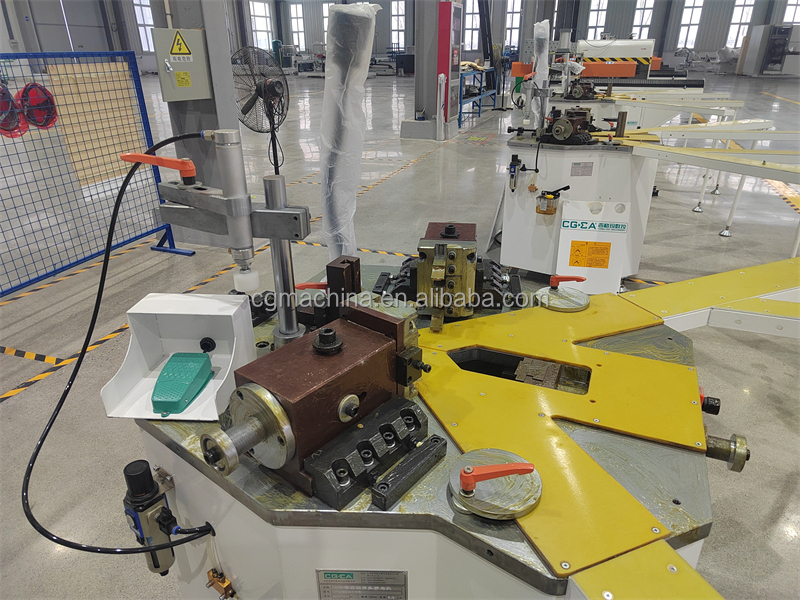

Product Details
