CGMA LDX3+2A-CNC-300 Aluminum windows end milling machine aluminum windows making machine
Product Introduction

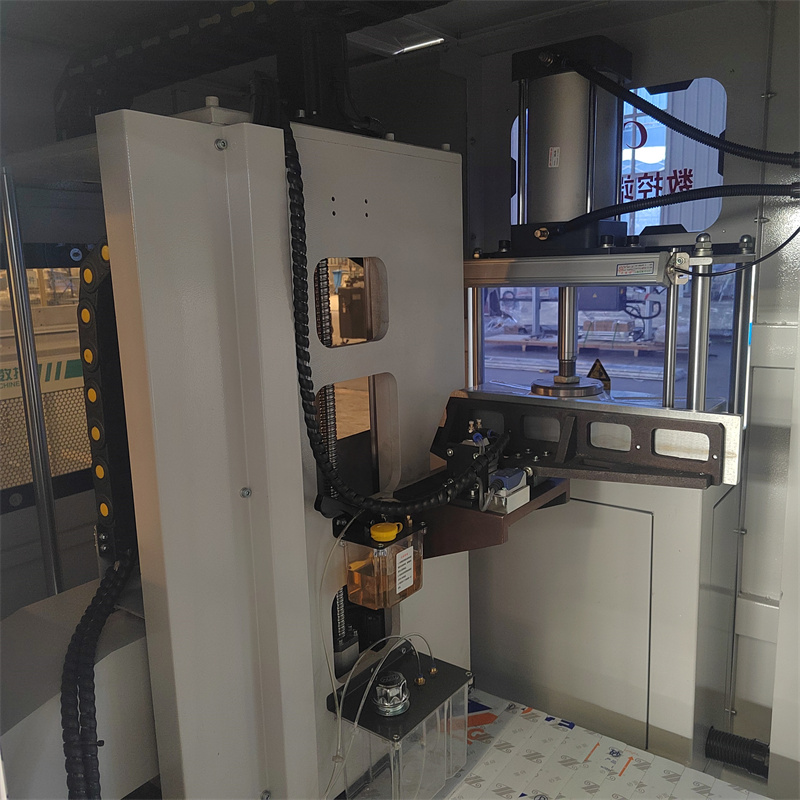

Through CNC programming to adjust the position of the cutter automatically, this machine is suitable for processing all kinds of profile end face, step-surface, and strengthen mullion processing. It can process multiple profiles at the same time, big diameter cutter and high processing efficiency. Full servo control, good stability, fast speed, high precision. Equipped with double-head big power(3KW) precision electric motor, which can rotate 90 degree to realize the cutting off function, the section of the processed profile could be imported in IPC, use as you need, and simple operation, no need skilled worker, online with software, process automatically by scanning the bar code. Fully enclosed structure, low noise, environmental protection and simple appearance. The Max. height of milling is 200mm.
Main Feature
1.High automatic: through CNC programming to adjust the position of the cutter automatically
2.High efficiency: it can process multiple profiles at the same time.
3.Simply operation: no need skilled worker, online with software, process automatically by scanning the bar code.
4.Convenient: the section of the processed profile could be imported in IPC, use as you need.
5.Working stable: full servo motor control.
Main Technical Parameter
|
Item |
Content |
Parameter |
|
1 |
Input source | 380V/50HZ |
|
2 |
Working pressure | 0.5～0.8MPa |
|
3 |
Air consumption | 130L/min |
|
4 |
Total power | 3KW |
|
5 |
Motor speed | 2820r/min |
|
6 |
Max. height of milling | 200mm |
|
7 |
The cutter quantities | 2pcs（∮300/1pc，∮305/1pc） |
|
8 |
The cutter specification | Saw blade：∮300×∮32×6mmSaw blade：∮305×∮32×3.2mm |
|
9 |
Dimension（L×W×H） | 4200×1300×1000mm |
|
10 |
Weight | 950KG |
Main Component Description
|
Item |
Name |
Brand |
Remark |
|
1 |
Servo motor, Servo driver |
Weide |
China brand |
|
2 |
PLC |
Delta |
Taiwan brand |
|
3 |
Spindle motor |
Gaoweite |
China brand |
|
4 |
Standard air cylinder |
Baihong |
China brand |
|
5 |
Solenoid valve |
Yuanmei |
China brand |
|
6 |
Rectangular linear guide rail |
PEK |
Italy brand |
| Remark:when the supply is insufficient, we will choose other brands with the same quality and grade. | |||
