Automatic production line for aluminum window and door

Short Description:

This automatic production line is mainly composed by cutting unit, drilling and milling unit, robot arms, positioning table, sorting line, conveyor line, digital display screen and so on, it only need two operator to complete almost process for aluminum window and door frames, which can help you achieve Intelligent manufacturing to make your working easier.

Send email to us

Product Detail

Product Tags

CGMA automatic aluminum windows and doors making production line, aluminum windows making machine

Product Introduction

Below is intelligent Production Line Proposal for 400 sets aluminum rectangular window frames per day.
The production line is mainly composed by cutting unit, drilling and milling unit, robot arms, positioning table, sorting line, conveyor line, digital display screen and so on, it only need two operator to complete almost process for aluminum window and door frames, below configuration is for your reference, different processing, different configuration, CGMA can design the proper production line according to your requirement.

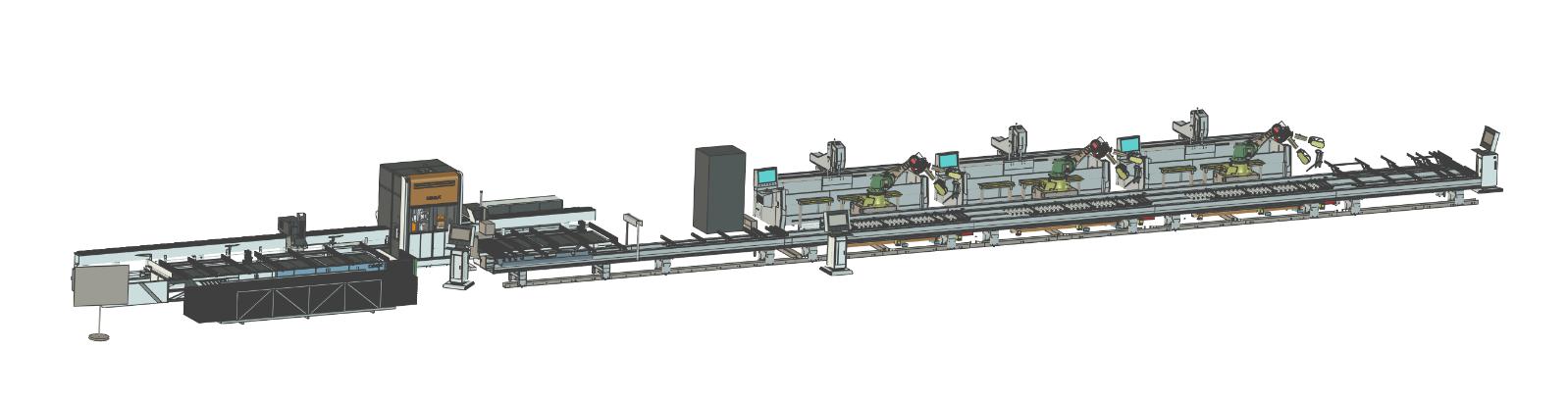

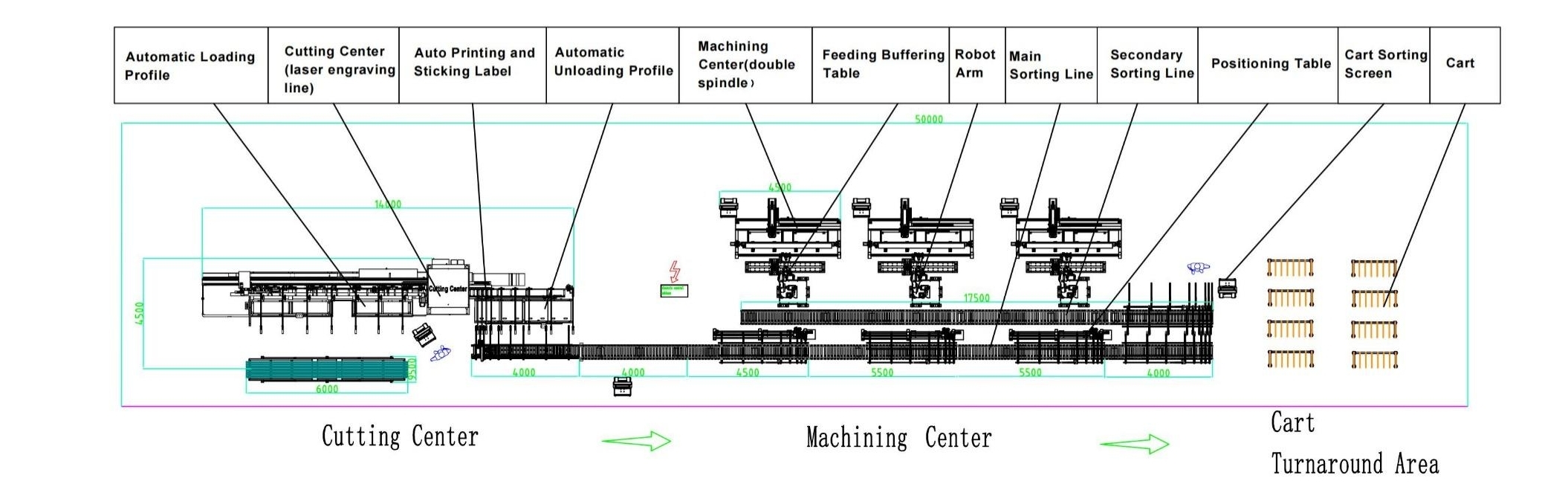

Layout diagram

Main Function of Intelligent Production Line

1.Cutting unit: Automatic cutting ±45°,90°, and laser engraving line.
2.Printing and sticking label unit: Automatic printing, and sticking label on the aluminum profiles.
3. Scanning label unit: Automatic scanning the label and assigning the aluminum profiles to the indicated machine.
4. Drilling and milling unit: Robot arm can automatically pick and put the aluminum profiles from drilling and milling machine, which can automatically adjust the fixture, exchange the tools and complete drilling and milling.
5. Cart sorting unit：Scanning label by manual to put the finished products on the indicated location.

Main Technical Parameters for Intelligent Production Line

No.	Content	Parameter
1	Input source	AC380V/50HZ
2	Working air pressure	0.5～0.8MPa
3	Cutting angle	±45°,90°
4	Cutting feeding length	1500～6500mm
5	Cutting length	450～4000mm
6	Cutting section size（W×H）	30×25mm～110×150mm
7	Overall dimension（L×W×H）	50000×7000×3000mm
