Performance Characteristics
● Adopts pneumatic swing angle.
● The saw blade is connected with high precise spindle motor directly to rotate, stable and reliable, high precise and low noise.
● Equipped with the phase sequence protector device to protect the equipment effectively.

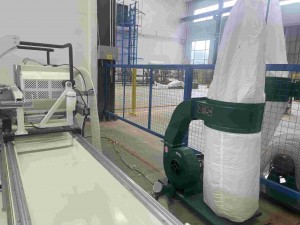

● This machine is equipped with a dusty collector so as to protect the health of operator.
Product Details
Main Components
|
Number |
Name |
Brand |
|
1 |
Magnetic grid system | Germany·ELGO |
|
2 |
Low-voltage electrical appliances | Germany·Siemens |
|
3 |
Button,Rotary knob | France·Schneider |
|
4 |
Carbide saw blade | Germany·Hops |
|
5 |
Air tube(PU tube) | Japan·Samtam |
|
6 |
Standard air cylinder | Taiwan· Airtac/Sino-Italian joint venture·Easun |
|
7 |
Phase sequence protector device | Taiwan·Anly |
|
8 |
Solenoid valve | Taiwan·Airtac |
|
9 |
Oil-water separate (filter) | Taiwan·Airtac |
|
10 |
Spindle motor | Shenzhen·Shenyi |
Technical Parameter
|
Number |
Content |
Parameter |
|
1 |
Input power | 380V/50HZ |
|
2 |
Working pressure | 0.6～0.8MPa |
|
3 |
Air consumption | 80L/min |
|
4 |
Total power | 4.5KW |
|
5 |
Speed of spindle motor | 2820r/min |
|
6 |
Specification of saw blade | ∮450×∮30×4.4×120 |
|
7 |
Cutting angle | 45º, 90º |
|
8 |
45°Cutting size(W×H) |
120mm×165mm |
|
9 |
90°Cutting size(W×H) |
120mm×200mm |
|
10 |
Cutting accuracy | Error of perpendicularity≤0.2mm; Error of angle≤5' |
|
11 |
Range of cutting length | 450mm～3600mm |
|
12 |
Dimension (L×W×H) | 4400×1170×1500mm |
|
13 |
Weight | 1150Kg |
