Digital Display Corner Connector Cutting Saw for Aluminum Window and Door CSAM-50D

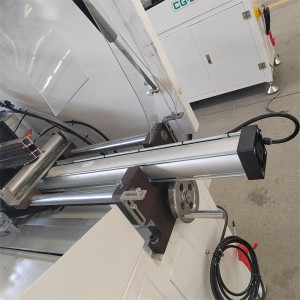

Digital Display Corner Connector Cutting Saw for Aluminum Window and Door Featured Image

Short Description:

1. It is used for aluminum corner keys in angle 90° cutting.

2. Digital measurement display.

Send email to us

Product Detail

Product Tags

Main Feature

1. This machine adopts PLC control operation.

2. Magnetic scale measurement, digital display, high accuracy positioning.

3. Large cutting range: cutting length range is 3mm～600mm, the width is 130mm, the height is 230mm.

4. In order to prevent the cutting surface meet the saw bit, equipped with special feeding clamping manipulator, so that the corner connector is not contact with cutting vertical panel during feeding.

5. Fast cutting speed: the saw blade rotation speed up to 3200r/min, saw blade linear speed is high, high cutting efficiency.

6. Stable cutting, adopts gas liquid damping cylinder.

7. The electrical box is equipped with the phase sequence protector.

Main Technical Parameter

Item	Content	Parameter
1	Input source	AC380V/50HZ
2	Working pressure	0.5～0.8MPa
3	Air consumption	80L/min
4	Total power	3KW
5	Cutting motor	3KW, rotation speed 3200r/min
6	Saw blade Specification	φ500×φ30×4.4 Z=108
7	Cutting section size(W×H)	130×230mm
8	Cutting angle	90°
9	Cutting accuracy	Cutting length error:±0.1mm, Cutting perpendicularity:±0.1mm
10	Cutting length	3mm～300mm
11	Dimension(L×W×H)	Main engine:2000×1350×1600mm Material rack:4000×300×850mm
12	Weight	650KG

Main Component Description

Item	Name	Brand	Remark
1	Magnetic system	ELGO	Germany brand
2	PLC	Schneider	France brand
3	Low-voltage circuit break, AC contactor	Siemens	Germany brand
4	Button, Knob	Schneider	France brand
5	Proximity switch	Schneider	France brand
6	Air cylinder	Airtac	Taiwan brand
7	Solenoid valve	Airtac	Taiwan brand
8	Oil-water separator(filter)	Airtac	Taiwan brand
9	Rectangular linear guide rail	HIWIN/Airtac	Taiwan brand
10	Alloy tooth saw blade	AUPOS	Germany brand
Remark:when the supply is insufficient, we will choose other brands with the same quality and grade.
