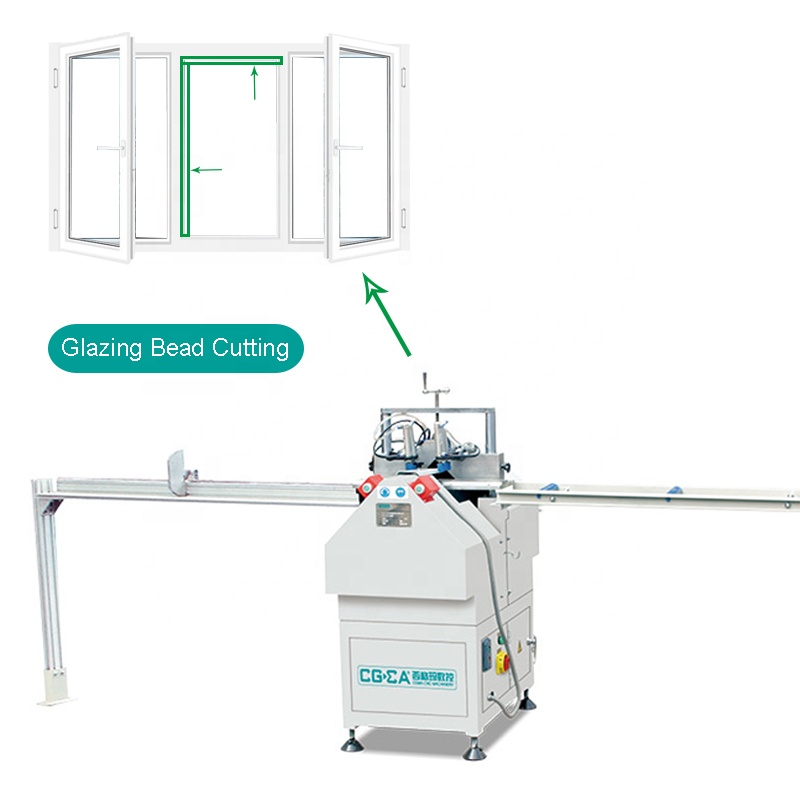

Glazing Bead Cutting Saw for Aluminum and PVC Window and Door SYJ03-1800

Glazing Bead Cutting Saw for Aluminum and PVC Window and Door Featured Image

Short Description:

Use for cutting glazing bead profile in 45°and chamfer, so as to ensure the combination seam of the corner looks nice.

Product Detail

Product Tags

Performance Characteristics

● It is used for cutting glazing bead profile in angle 45°and chamfer,so as to ensure the combination seam of corner looks nice.
● Equipped with universal profile mold, can cut two profiles at the same time,the cutting efficiency is high.
● The special measuring device can ensure the dimensional accuracy during cutting and eliminate the error of assembling the frame fan and the bead assembly.
● The vertical direction adjustable angle compression system adapts to different profiles and the compression is more reliable.
● The machine comes standard with 4 meters aluminum material feeding rack, which is faster and more convenient.

Main Components

Number	Name	Brand
1	Low-voltage electricalappliances	Germany·Siemens
2	Button,Rotary knob	France·Schneider
3	Carbide saw blade	Japan·TENRYU
4	Air tube(PU tube)	Japan·Samtam
5	Standard air cylinder	Sino-Italian joint venture·Easun
6	Phase sequence protectordevice	Taiwan·Anly
7	Solenoid valve	Taiwan·Airtac
8	Oil-water separate (filter)	Taiwan·Airtac

Product Detail

Technical Parameter

Number	Content	Parameter
1	Input power	380V/50HZ
2	Working pressure	0.6～0.8MPa
3	Air consumption	50L/min
4	Total power	2.2KW
5	Speed of spindle motor	2800r/min
6	Specification of saw blade	∮230×2.2×1.8×∮30×80P
7	Max. Cutting width	50mm
8	Cutting depth	40mm
9	Cutting accuracy	Error of angle≤5＇
10	Range of length of blankprofile	200mm～6000mm
11	Range of cutting length	300～1600mm
12	Quantity of feedingblank profile	1～2pcs
13	Feeding rack length	4000mm
14	Dimension(L×W×H)	500×1300×1300mm
15	Weight	220Kg
