Product Introduction
1.The production line features low power consumption, low noise and scrap automatic collection, which can be used to process profiles with film and non-film as well.
2.It can finish the length cutting at the cutting saw station, flushing holes, installation holes and grounding marks punching by a combination mold in one step at punching station, riveting points punching at both end at the last step.
3.The production line is mainly including the following working stations:
◆ Profile loading station
◆ Profile feeding station

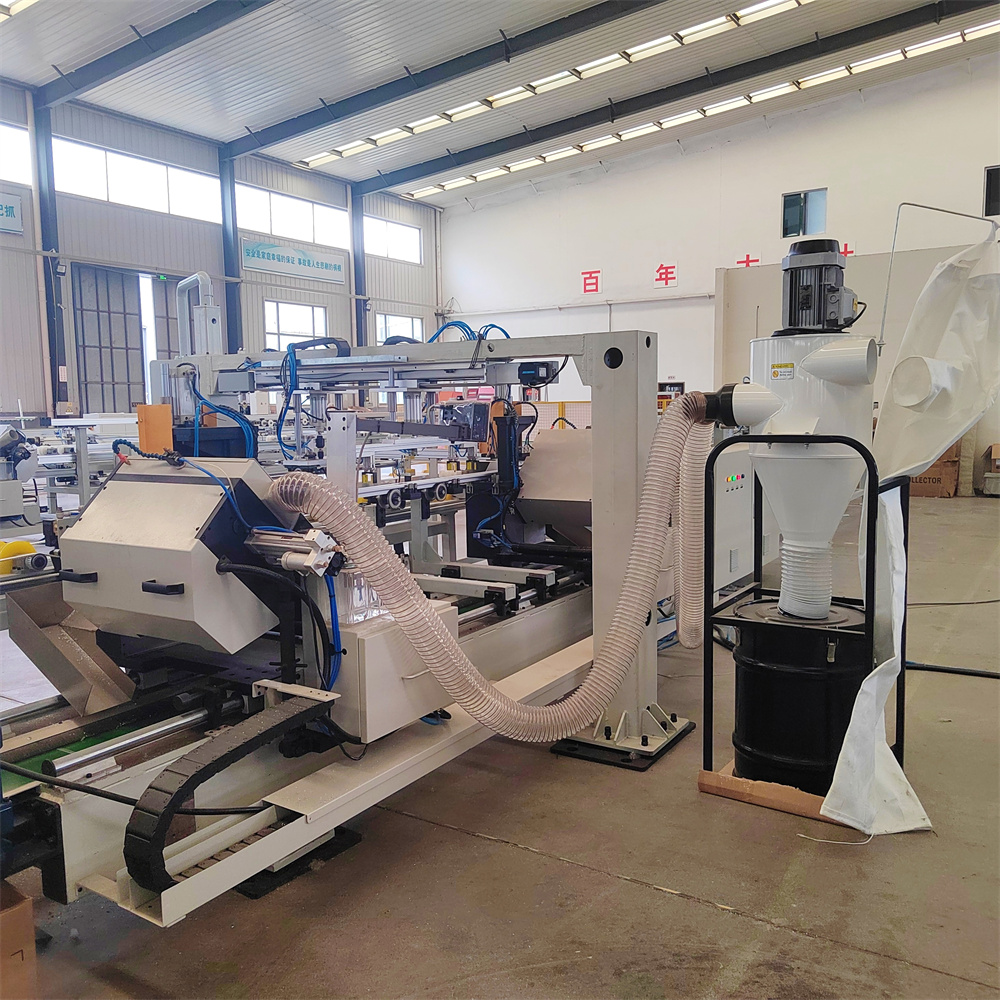

◆ Profile cutting station

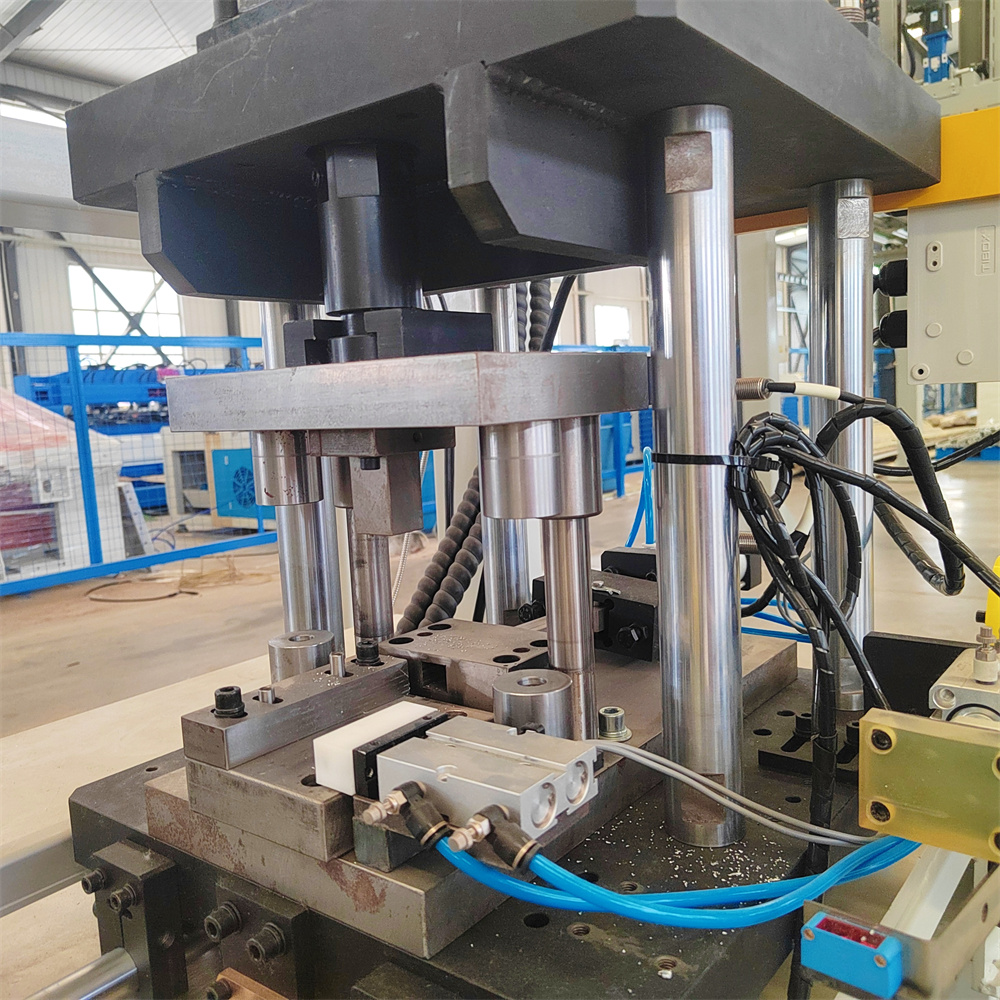

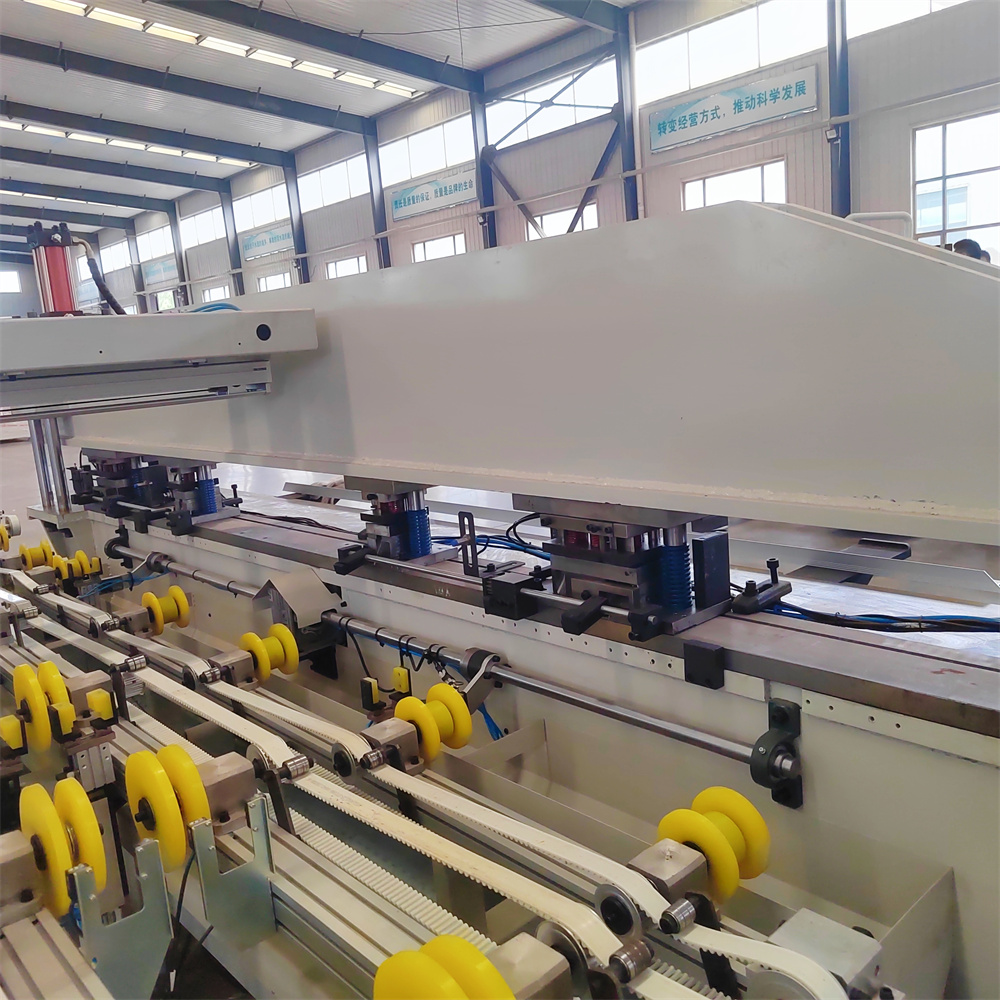

◆ Flushing hole, installation hole, grounding mark punching station
◆ Riveting points punching station
Advantages:
◆ Compatibility for different profiles
◆ High cutting accuracy
◆ High quality components, high position accuracy, stable operation
◆ No scratches, less burrs, high quality surface finish
◆ Easy operation, save labor costs
◆ Servo precise positioning to avoid waste of profiles
◆ Equipped with safety protection facilities and self-diagnosis functions
◆ Equipped with high efficiency dust collector, maintain clean working environment
Main technical parameter
|
No. |
Content |
Parameter |
|
1 |
Cutting length tolerance |
+/- 0.15mm |
|
2 |
Cutting angle tolerance |
45°: +/-0.15°, 55°: +/-0.15°, 55°: +/-0.15° |
|
3 |
Cycle time (Second) |
2.6 - 3.6 |
|
4 |
Feeding speed |
0 - 32000mm/min |
|
5 |
Single cutting quantity |
2 pieces |
|
6 |
Spindle speed |
0 - 4000r/min |
|
7 |
Power supply |
AC380V/50HZ |
|
8 |
Working air pressure |
0.6 - 0.8MPa |
|
9 |
Total power |
30KW |
|
10 |
Sawing angle |
35° - 55° |
|
11 |
Processing length range |
1500 - 2600mm |
|
12 |
Max. Processing height |
12 - 40mm |
|
13 |
Sawing width |
25 - 40mm |
|
14 |
Repeat position accuracy |
≤ 0.2mm |
|
15 |
Overall dimension(LxWxH) |
23870x4800x2400mm |
