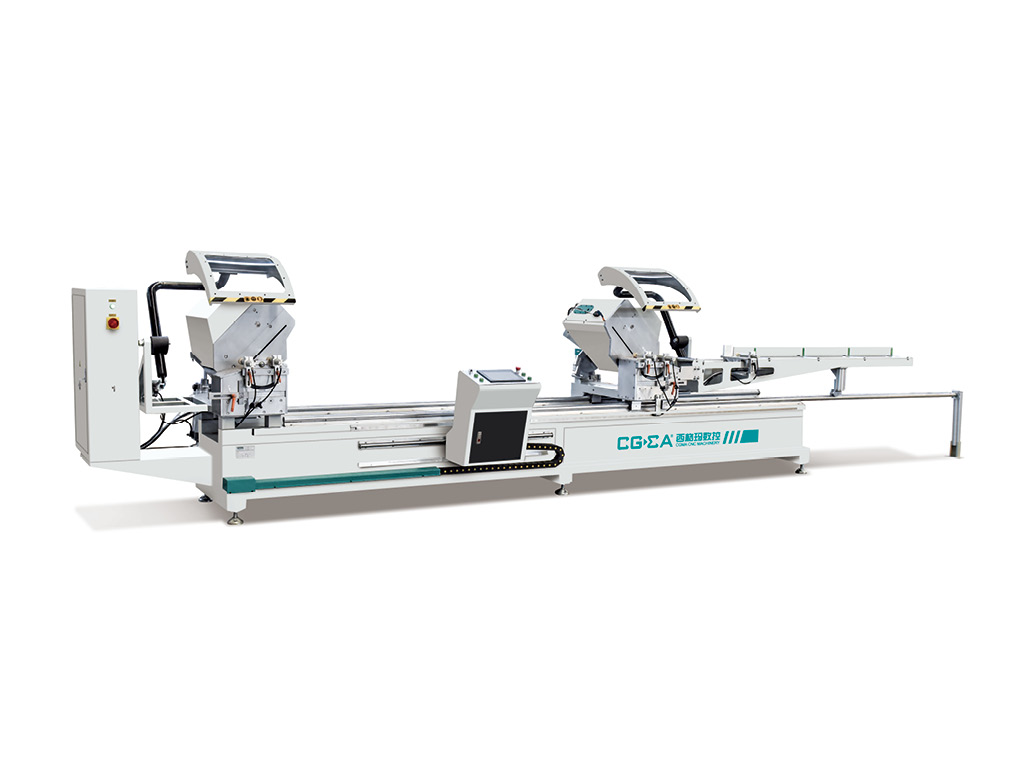

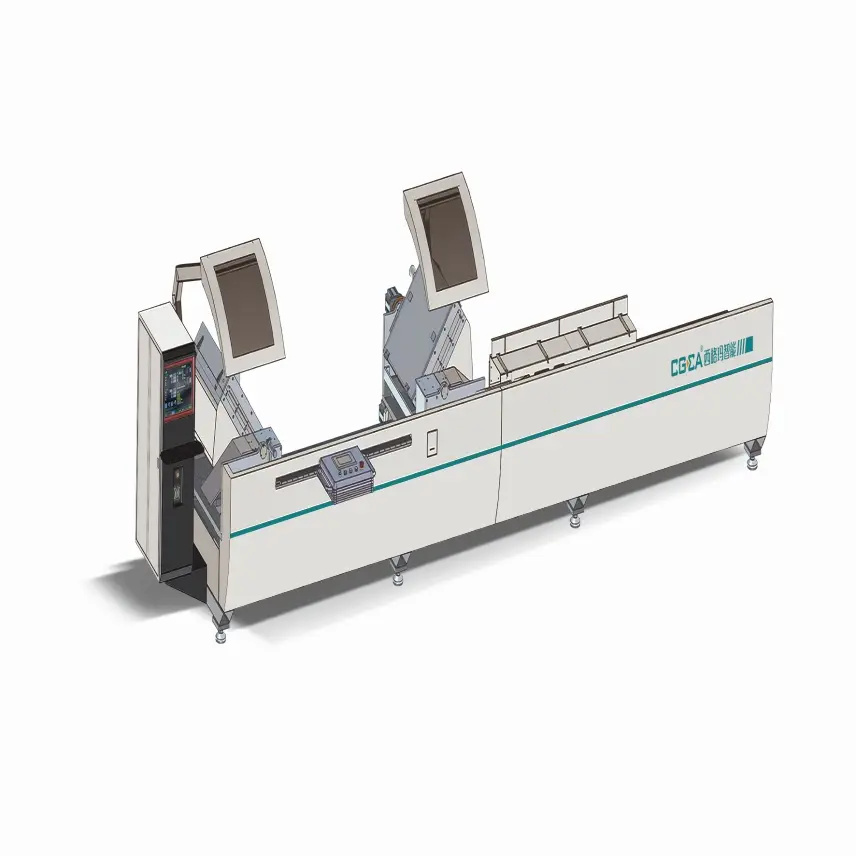

CNC Double Head Variable Angle Cutting Saw for Aluminum Profile LSRJZ2B-CNC-500×5000

Short Description:

1. It is used for cutting aluminum profile in any angle between 45°～90°, and 135°.

2. Full-closed loop control, the movable saw head adopts servo motor drive.

3. The range of cutting length is 300mm～5000mm.

4. Stable and reliable, high cutting accuracy and low noise.

Send email to us

Product Detail

Product Tags

Main Feature

1. High accuracy positioning: full-closed loop control, the movable saw head adopts servo motor drive, the synchronous belt drive and fix the ruler.

2. Large cutting range: it can cut any angle between 45°~90°, and 135°, pneumatic swing angle, the cutting length is 300mm~5000mm, the cutting width is 130mm, the cutting height is 230mm.

3. Stable cutting: the direct-connected motor drives the saw blade to rotate, the gas liquid damping cylinder pushes the saw blade cutting.

4. High security: equipped with the phase sequence protection device to protect the saw blade effectively when the phase sequence is cut off or connected by mistake. The machine head is equipped with automatic opening and closing protective cover, which closes when the equipment is working.

5. Environmental protection：equipped with the dust collector to protect the operator’s health.

Main Technical Parameter

Item	Content	Parameter
1	Input source	380V/50HZ
2	Working pressure	0.6～0.8MPa
3	Air consumption	80L/min
4	Total power	7.5KW
5	Spindle speed	3000r/min
6	Saw blade specification	∮500×4.4×∮30×120
7	Cutting accuracy	The perpendicularity error: ≤0.2mm The angle error: ≤5'
8	Dimension（L×W×H）	7000×1350×1700mm
9	Weight	2000KG

Main Component Description

Item	Name	Brand	Remark
1	Low-voltage apparatus	Siemens/Schneider	Germany/France Brand
2	PLC	Schneider	France brand
3	Servo motor, Servo driver	Schneider	France brand
4	Button, Knob	Schneider	France brand
5	Proximity switch	Schneider	France brand
6	Relay	Panasonic	Japan brand
7	Magnetic system	ELGO	Germany brand
8	Synchronous belt	Megdyne	Italy brand
9	Phase sequence	Anly	Taiwan brand
10	Standard air cylinder	Airtac	Taiwan brand
11	Solenoid valve	Airtac	Taiwan brand
12	Oil-water separator(filter)	Airtac	Taiwan brand
13	Spindle motor	Shenyi	China brand
14	Alloy tooth saw blade	AUPOS	Germany brand
