CNC Automatic Frame Assembly Machine for Aluminum Profile HDRC-1730 ADRH-CNC-1700*3000

Main function: used for efficiently drilling and riveting for easily assembling aluminum security window and door.

Main feature:

1.High efficiency: This machine can drilling counterbore hole, finish riveting during one time clamp, and it can drill door hinge holes.
2.Large range: Min. Frame size 500*900mm, Max. Frame size 1700*3000mm.
3.Big power: driven by hydraulic system, the Max. Pressure is 48KN, ensure the crimping corner strength.

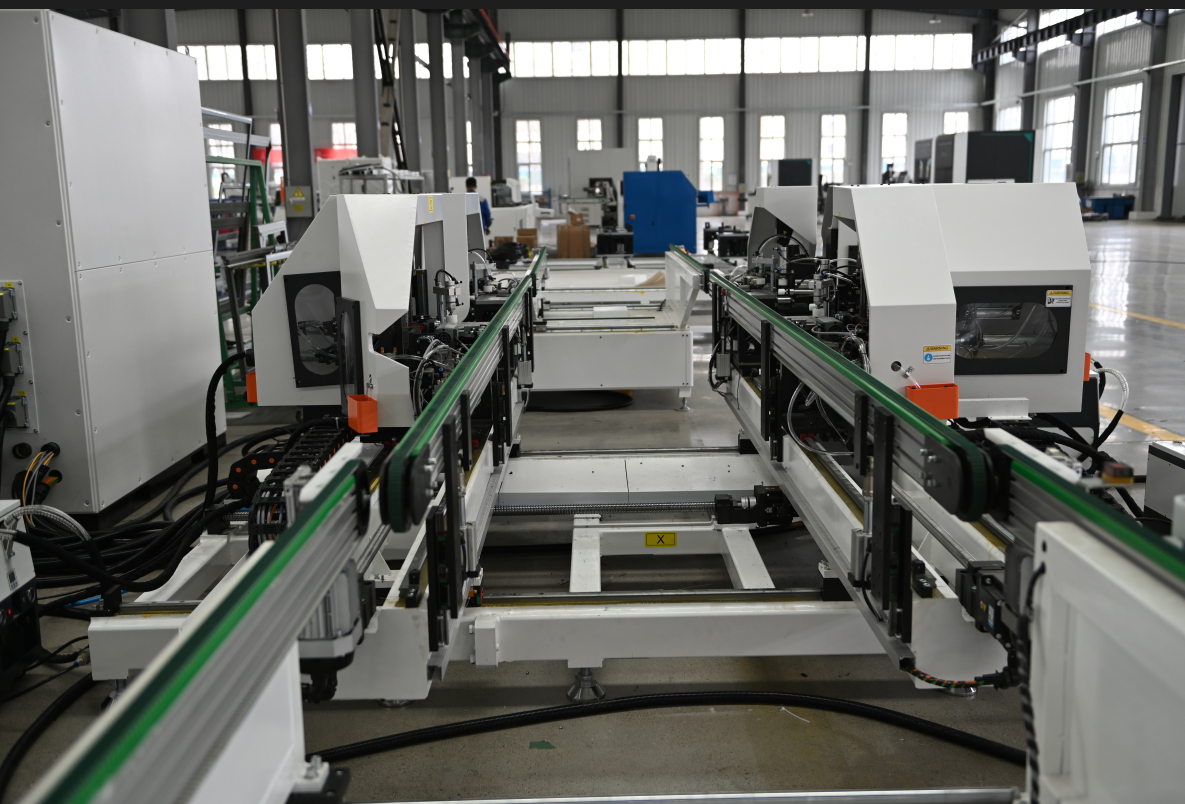

4.High auto level: transfer the rectangular frame automatically to next process by the conveyor belt of input and output worktable, save time and labor.
5.Low labor intensity: Security window and door frame is transferred on conveyor belt, no need worker to carry.

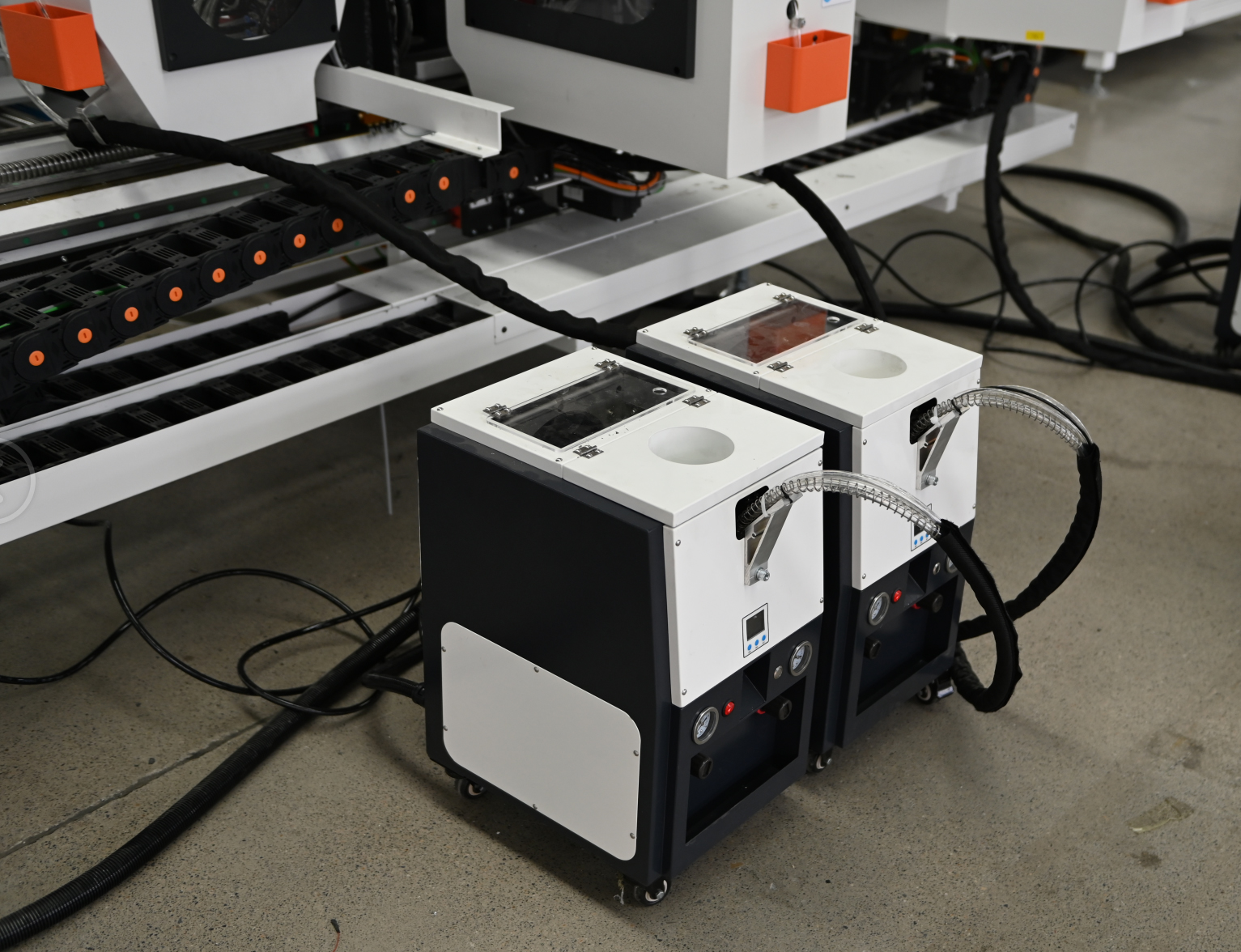

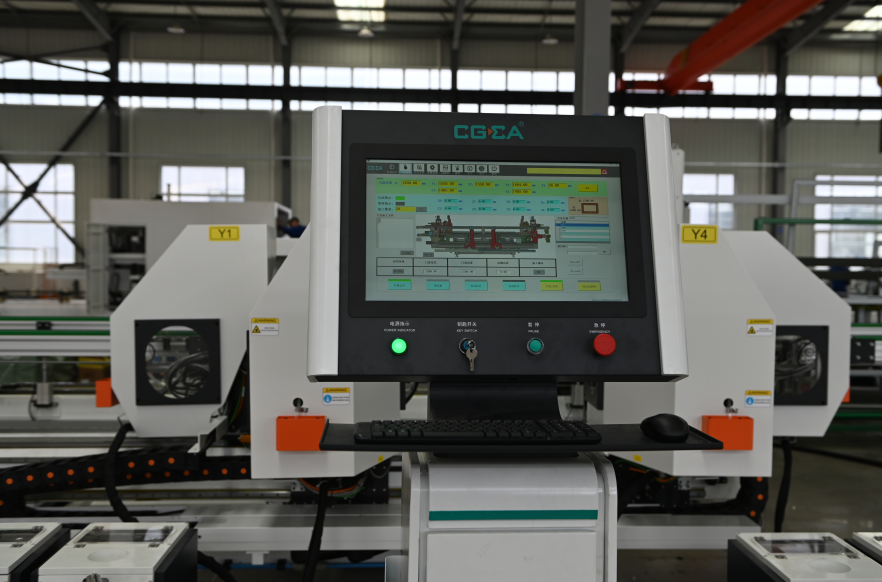

6.High accuracy: This machine adopts CNC controller, which makes the machine easily operation and high accuracy. Each riveting sequence vibrating disk can automatically supply the rivet to two riveting heads, to make the machine more automated
7.The two bottom heads can move on the Y-axis to realize process the hinge holes in the any position.

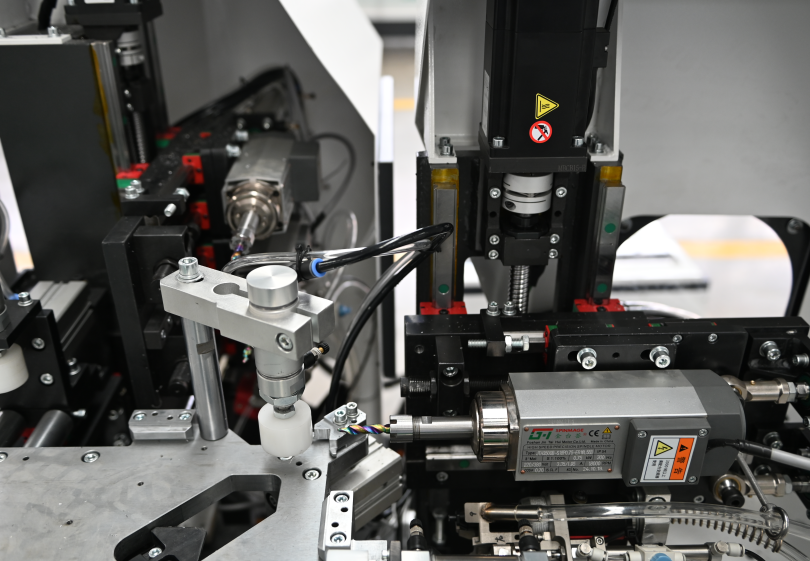

8.Increased the servo system drive the riveting heads, it can control the drilling depth according to the requires.
